A Series SMC Air Source Treatment 0.5~8.5bar M5~G1”

A Series SMC Air Source Treatment 0.5~8.5bar M5~G1”



SPECIFICATION



1,Working Medium:Air source

2,Body material:Aluminum die-casting

3,Filter bowl and Lubricator bowl material:PC

4,Filter element material:Brass or plastic

5,Bowl Guard:Steel

6,Seal Material:NBR

7,Adjustabing knob:POM

8,Working pressure:0.5~8Bar

9,Working Temperature:0~60

10,Filtration fineness:40µ,5µ can be available

11,Mounting type: Pipe mounting or bracket support mounting

12,Regulator type:Diaphragm type

13,Lubricator type:Oil volume adjustable during working

14,Port size:M5x0.8~G1”

15,Drainage model:Manual drainer,Semi-automatic drainer,automatic drainer

*Design type:Modular

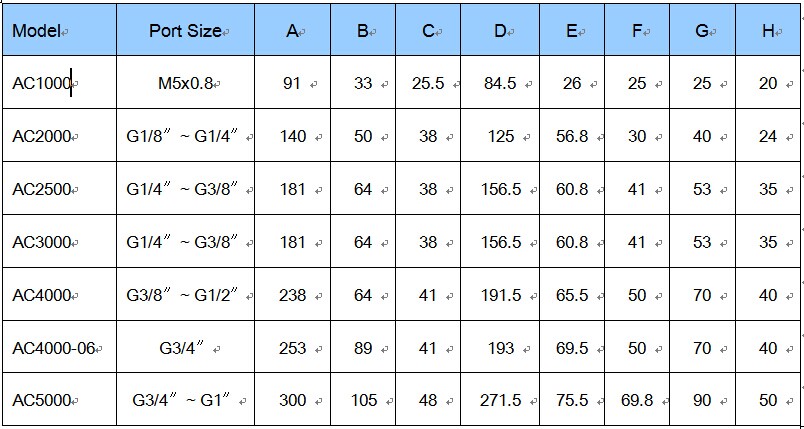

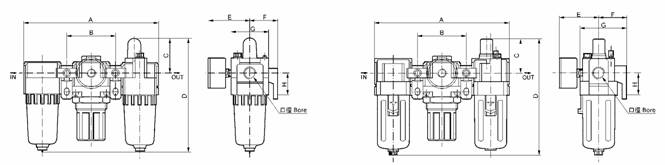

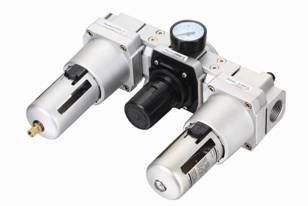

AC Series  Three Combination(Filter and Regulator and Lubricator)

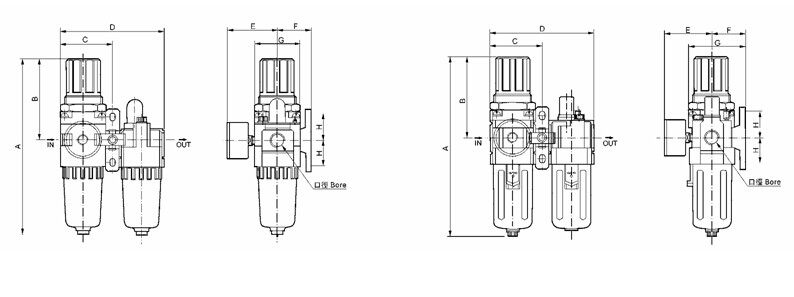

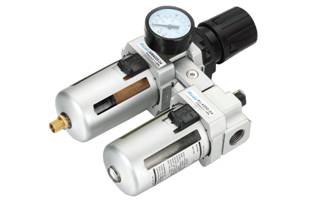

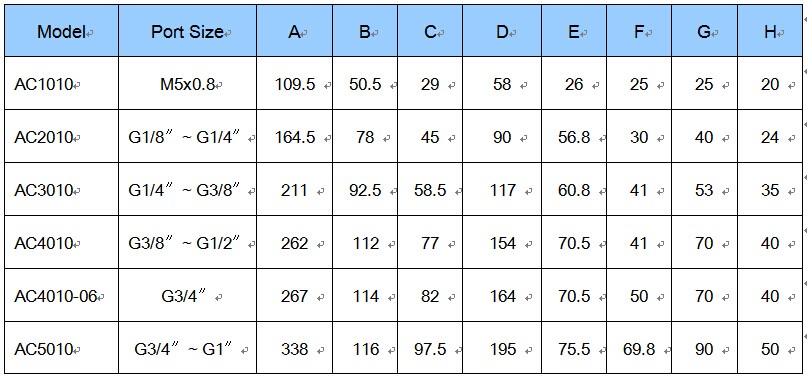

AC Series Two Combination(Filter Regulator and Lubricator)



AW Series Filter Regulator

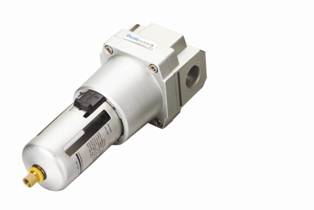

AF Series Filter

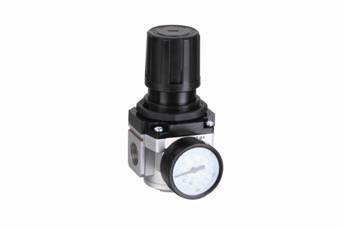

AR Series Regulator

AL Series Lubricator
